    UNIVERSAL SOFT-BEARING BALANCING MACHINE

    BELT DRIVEN|HORIZONTAL AXIS ROTATION

    FOR ROTORS UP TO 8000 KG

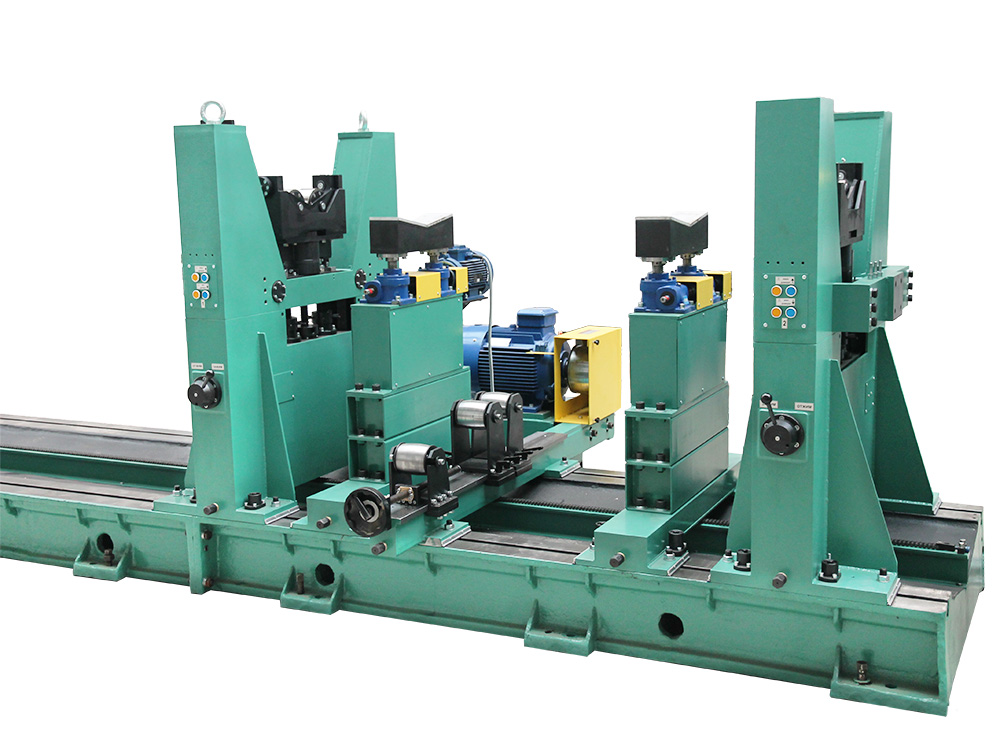

    UNIVERSAL BALANCER 9K718M is a soft bearing type of equipment.

    The machine has high accuracy (0,4 gmm \ kg). Accuracy is achieved due to the special design of the spindle and the rig of the machine, as well as a reliable balancing system, PAK-1, which has a high degree of noise immunity. Ease of control allows you to quickly learn how to work on the machine and get to work as soon as possible. When designing the machine, high demands were placed on the functionality and versatility of each node, this made it possible to install absolutely any driveshaft on the machine with a minimum of time.

    Characteristic features of soft bearing  balancing machines:

    • Self-aligning rollers;
    • Frequency-controlled asynchronous electric drive;
    • The presence of jacks for smooth and shock-free installation of the rotor;
    • The possibility of using the machine without installation on a special foundation;
    • 2 end stops included.

    Features common to all machines

    ALL-METAL SUPPORTS FOR ROTORS WITH HIGH INITIAL UNBALANCE.
    LONG STROKE BELT DRIVE
    REAL TIME DISPLAYED IMBALANCE MEASURING
    OWN ADVANCED MEASURING SYSTEM
    SELF-DIAGNOSTICS FUNCTION
    ETHERNET CONNECTION FOR DIAGNOSIS
    LANGUAGE SELECTION
    CUSTOMISED PRINT OUT OF BALANCE DATA
    17-INCH TOUCH SCREEN MONITOR
    PARAMETERS AND ACCURACY OF MEASUREMENT
    DATA STORAGE TO INTERNAL FLASH MEMORY AND USB MEMORY STICK

    REPLACEABLE CARTRIDGES WITH MOUNTING PRISMS ALLOW BALANCING OF VARIOUS ROTORS IN OWN BEARINGS OR BEARING ASSEMBLIES
    OPERATION & SERVICE PERSONALIZED MANUALS
    INTUITIVE SIMPLE OPERATIONING
    HIGH PRODUCT RELIABILITY
    SAFETY OPTIONS MODIFICATIONS
    LOW-COST SPARE PARTS
    BALANCER MANUFACTURER SINCE 1973
    OEM AND AFTERMARKET REPAIRS
    12 MONTHS WARRANTY

    Main Specifications

    Parameters 9К718M
    Balancing rotors weight range, kg 80 – 8000
    Maximum rotor diameter (over the bed), mm 2600
    Rotor bearin journals diameter, mm 30 – 420
    Distance between rotor bearing journal centers, mm, min/max 400 – 5000
    Support type Rollers
    Minimal achievable residual specific unbalance, gmm/kg 0,4
    Rotor rotation speed range, rpm 200 – 1300
    Drive type Frequency-controlled asynchronous electric drive
    Electric motor power, kW 22
    Drive gear type Belt
    Equipment Balancing system PAK-1
    Bed length, mm 6000
    Machine weight, kg 3500

    MACHINES CAN BE DELIVERED:

    A BELT DRIVE PARTS;

    AXIAL (CARDAN) DRIVE PARTS;

    COMBINED.

    PRODUCT HIGHLIGHTS

    High universality

    Service in the EU

    Short time measurement

    Low-cost maintenance

    Reliable and productive

    Quick payback time

    DESIGN FEATURES

    SOFT-BEARING BALANCING MACHINE 9K718M FOR DIFFERENT TYPES OF ROTORS

    Balancing inboard and outboard rotors of various designs and types (e.g. electric motor anchors, turbines, drums).

    Balancing of parts that do not have their own bearing surfaces on special mandrels (e.g. discs, fans, pumps). Also, in its own bearings.





    SOFT-BEARING BALANCER FEATURES:

    – SELF-ALIGNING ROLLERS;

    – FREQUENCY-CONTROLLED ASYNCHRONOUS ELECTRIC DRIVE;

    – JACKS FOR SMOOTH AND NON-IMPACT ROTOR INSTALLATION;

    – OPERATING THE MACHINE DOESN’T REQUIRE PLACING IT ON A SPECIAL FOUNDATION;

    – 2 END STOPS INCLUDED IN PACKAGE.

    Rolers
    Horizontal Balancing Machines Series 9K

    Basically, 2 rollers diameters are provided for each cassette to reduce interference when the roller diameter coincides with the journal diameter.

    Jacks for smooth installation and removal of the rotor from the supports provide both protection of the soft-bearing balancing machine ‘s 9K718M mechanisms against rotor impacts, create convenience and safety during operation.

    Horizontal Balancing Machines Series 9K
    Horizontal Balancing Machines Series 9K
    Horizontal Balancing Machines Series 9K
    Horizontal Balancing Machines Series 9K
    PAK-1

    PAK-1 BALANCING SYSTEM

    • Firstly, digital system is based on an industrial fanless computer with a touch screen and a measuring unit.
    • More over, setting up of the machine is performed by the 3 start-ups method with the use of calibration weights on the serial.
    • Calibration of the machine is made by the operator that allows to both get the maximum sensitivity of the machine, and indemnify against annual payment for services in calibration of the machine.
    • Furthermore, value calculation of permissible imbalances in the absence of technical documentation for the balancing product.
    • Value calculation of mass and correction weight are required for simplicity process when setting up the machine at the new rotor.
    • Real time display: any defect of a rotor or hindrance, during the balancing process, is visible immediately as oscillation of measurement result.
    • Markedly, view of unbalance value in grams, gmm, gsm, gmm / kg, D, optionally.
    • In addition, the eccentricity of the balancing mandrel taken into account.
    • Then, unbalance spread on n-planes of correction
    • Possibility of correcting weights break-down into structurally conditioned anchoring points (e.g. blades, blades, grooves).
    • Reports making and printing on conducted balancing.
    • Lastly, balancing system has USB port for printer connection, USB flash memory, port for connecting to local network and Ethernet network.

    * You can change measuring software to PB-02M in order to save money with balancing system
