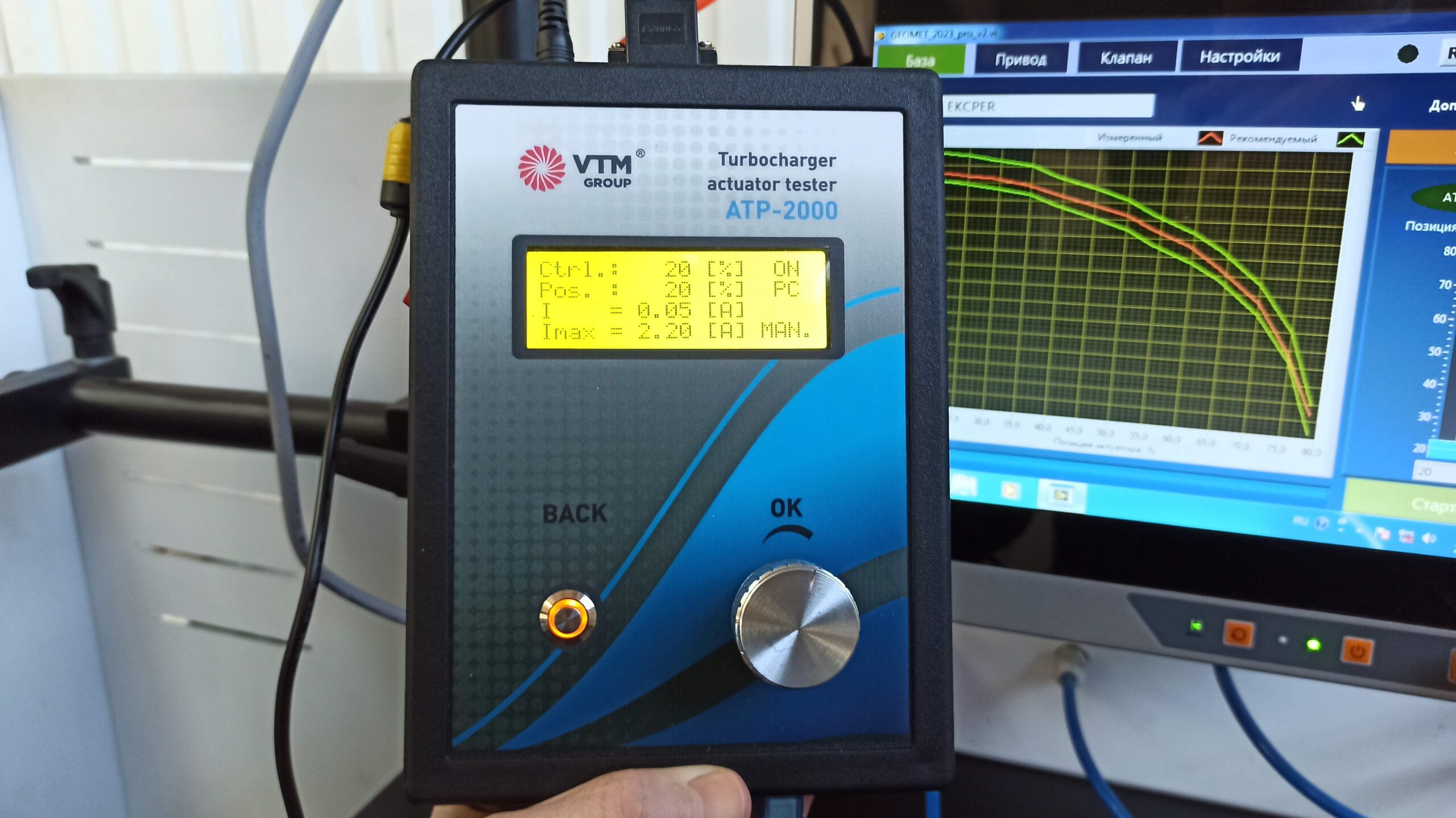

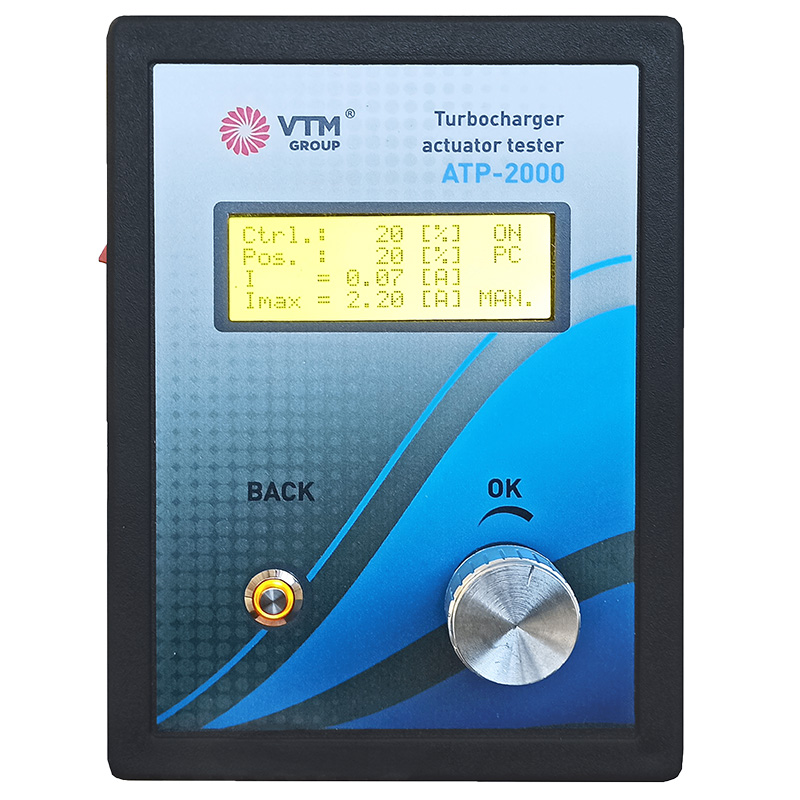

ELECTRONIC ACTUATOR TESTER ATP-2000

The ATP-2000 tester is designed for diagnostics of truck turbocharger actuators with 24/12V supply voltage.

The tester allows testing of actuators of most manufacturers, as well as calibration for Holset actuators.

The tester is used for calibration of variable turbocharger geometry on GEOMET stands

The ATP-2000 tester can be successfully used in turbocharger repair services, as well as in automotive workshops when reinstalling or replacing the actuator on the turbocharger.

Actuators under test

Holset
Holset US
Mitsubishi
Isuzu
Iveco
Hino (Mitsubishi)
Hino (Jideco)
John Deere (Delphi)
John Deere (BorgWarner)
Mercedes (BorgWarner)
Deutz-Fahr (BorgWarner)
JCB (BorgWarner)
New Holland (Jideco)
Tata

*The list may be increased when the firmware is updated.

Testing Function.

Diagnostics of the operation of actuators of most manufacturers. It has a mode of manual or automatic setting of the actuator position. Manual in the range from 5% to 95%, automatic from 10% to 90%.

To test actuators with 12 V supply voltage it is necessary to connect the cable through a 24/12V converter.

Functions Reset, Instal, Calibrate

Carrying out diagnostics of Holset actuators operation. This sequence of functions should be performed after installation (replacement) of the actuator on the turbocharger or after the need to correct the range of motion of the variable geometry.

It allows correct mounting of the actuator to the turbine and setting the correct range of motion of the lever.

Auxiliary functions

2A current protection within 3sec.
Prompts you to match the cable label to the selected type of actuator ●New
Percentage display of position sensor readings. ●New
USB Actuator control in conjunction with GEOMET software

Holset

HE200VG

Turbocharger numbers:

4309505, 3798216, 5350970, 5502162, 3792551, 3787309

HE300VG

Turbocharger numbers:

5327045, 4352218, 3798573, 3798539, 3781755, 3779987, 3798573RX, 4352218NX, 5327045, 3798535, 5326055, 5326058, 5327045RX

HE300VE, HE351VE

Turbocharger numbers:

5325887, 4043137, 4046836, 4046837, 68048234AA, R8048234AG, 68048234AF, 2834603, 3770973, 3770974, 4041504, 4048826, 4046264, 4048284, 2834220, 4051504-B, 5325947, 2834603, 2842406, 2834900, 2882075, 4955876, 2881755, 4955447

E400VE, HE451VE, HE531VE

Turbocharger numbers:

2191616, 2839392, 3767356, 3770147, 3770148, 3770156, 3770157, 3795456, 4031011, 2838752, 3776442, 3769188, 2840972, 2835101, 4046521, 4046522, 4047376, 2835104, 2835103, 2838751, 2838753, 2838754, 2840974, 3769190, 3769176, 3773438, 4031001, 3776443, 3776437, 3791471, 3791497, 2840970, 3769175, 3773437, 3776436, 3776441

Holset US

Turbocharger numbers:

Detroit Diesel 19514480D, 23536422, 23539570, 2836826, 3781169, 3786234, 378623400, 378623400H, 378623400HX, 3786234H, 3792069, 3792071, 3798597, 4033299, 4042439, 4042439NX, 4042439RX, 4047597, 4047598, 4609459, 5329513, 5352845, 5498208, AP80055, E23536422, E23539062, E23539570, R23536422, R23539062, R23539570

Mitsubishi

Mitsubishi actuator – IHI Isuzu turbo

Turbocharger numbers:

RHF55V, 898027-7725, 898027-7721, 898027-7722, 898027-7720, 898027-7733

Mitsubishi actuator – Mitsubishi turbo

Turbocharger numbers:

49377-03200, 49377-03201, 49377-03202, 49377-03203, 49377-03206

Mitsubishi actuator – Hino

Turbocharger numbers:

826591-0003, 826591-3, 826591-5003S, 779144-5023S, 779144-0025, 779144-0023, 779144-5017S, 779144-0019, 779144-0021, 847864-1 847864-0001, 847864-5001, 852179-0001, 852179-5001, 852179-0001, 17201E0740, 17201E0890, 17201E0741, 17201E0742

John Deere (Delphi)

Turbocharger numbers:

175788, 174121, 179030, 179035, 179036, 175733, 175735, 175243, 173900, 28188882, 5010314R94, 5010568R91, 5010569R91, 5010571R91, 5010573R91, 5010581R91, 5010314R95, 1831833C91, 1831835C91, 1832204C91, 1832503C91, 1842337C91, 1842582C91, 1850404C95, 1870932C91, 1871090C91, 1871092C91

Mercedes

Turbocharger numbers:

12739700003, 12739700012, 12739700004, 12739700013, 12739700016, 12739700005, 12739700014, 12739700017, A9360901680, A9360904780, A9360905680, A9360901880, A9360904880, A9360905780, A9360901980, A9360904980, A9360905880, A 936 090 16 80, A 936 090 47 80, A 936 090 56 80, A 936 090 18 801, A 936 090 48 801, A 936 090 57 801, A 936 090 19 802, A 936 090 49 80 , 10009700082, 10009700119, 10009700125, 10009700186, 10009700265, 10009700346, A9340901680, A9340902080, A9340902380, A9340902880, A9340904080, A9340904580

John Deere (Borg Warner)

Turbocharger numbers:

179702, 179133, 12639700059, RE548373, RE548374, SE501979, RE542390, 178934, 179694, 479694, 12639700071, 12639860071, 12639880071, 12639700072, 12639860072, 12639880072, 12639700119, 12639860119, 12639880119, RE543092, RE548368, SE501963, DZ100188

Deutz-Fahr

Turbocharger numbers:

1270970008з, 12709700069, 12709700091, 12709880083, 04912581, 04911651, 04911652, 04912801, F946201090340

JCB

Turbocharger numbers:

11559880019, 320/06177-1, 320061771, JCB 3CX, 4CX, 11559880020, 320/06377, 32006377

Hino (Jideco), New Holland

Turbocharger numbers:

789003-5003S, 789003-5006S, 789003-5007S, 789003-0003, 789003-0006, 7890030007, 789003-0009, 789003-3, 789003-6, 789003-7, 789003-9, 17201E0431, 17201E0432, 17201E0433, 17201E0432A, 17201-E0431, 17201-E0432, 17201- E0433, 17201-E0432-A

Tata

Turbocharger numbers:

1848304C3R

Ford Powerstroke 6, 4l, 2008-2010, 479515

Supplied with:

Electronic unit ATP-2000 1 PC.

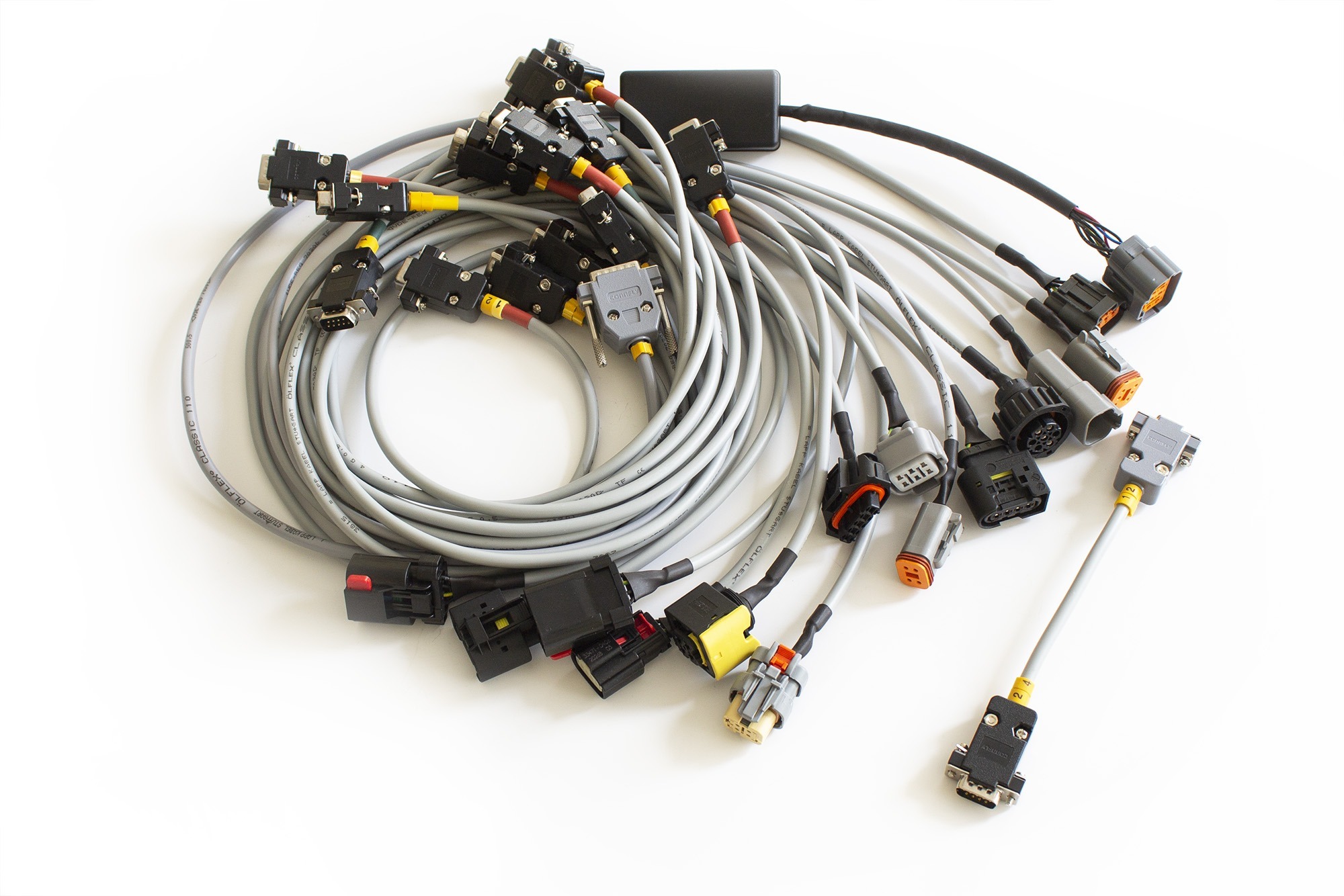

A set of cables for diagnostics of drives – 14 pcs.
24/12V converter – 1 pc.
USB cable 1 PC.
Instrument power supply:
- standard power supply AC / DC 24V, 4A.
- cable for connection to the vehicle’s standard socket VTM_CONNECT (1) ● New

(1) The basic delivery set is not included. You can purchase additionally if necessary.
