HARD-BEARING BALANCING MACHINE WITH BALANCING SYSTEM PAK-1
UP TO 5000 KG

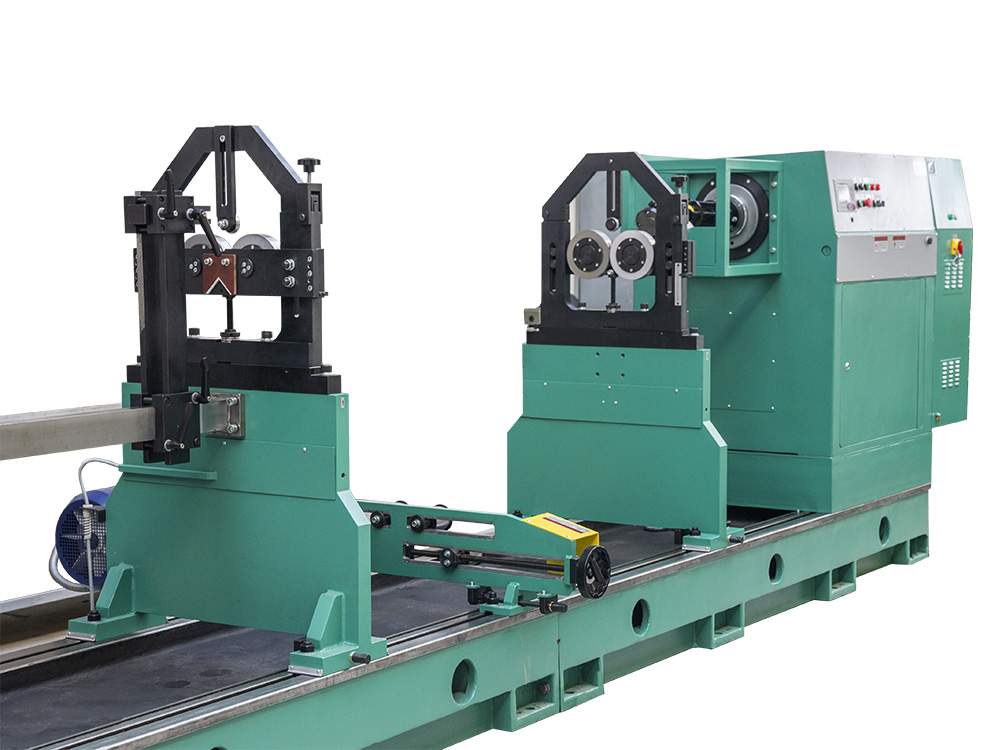

9D719 is an universal dynamic balancing machine with horizontal axis of rotation type. Generally, It is possible to balance the following kinds on such a machine:
- inter-support and cantilever rotors
- rotor on special mandrels (disks, fans, pumps)
- rotor in own bearings
Thanks to the narrow stands and belt drive, the balancing machine 9D719 is used for balancing of rotors of various structures at repair and production plants.
The machine has high accuracy (0,4 gmm \ kg). Accuracy is achieved due to the special design of the spindle and the rig of the machine, as well as a reliable balancing system, PAK-1, which has a high degree of noise immunity. Ease of control allows you to quickly learn how to work on the machine and get to work as soon as possible. When designing the machine, high demands were placed on the functionality and versatility of each node, this made it possible to install absolutely any driveshaft on the machine with a minimum of time.
The width of the support rollers and roller cartridges allows the rotor to be installed with a very short length. Highly located “roller cassettes” allow you to create products with different overall dimensions, and the modular design allows you to increase the standard dimensions of the machine due to spacers and accessories.
The support has the ability to adjust the “roller block” in height, this allows you to balance the rotor with different diameters of the support journals, and also allows you to center the rotor when setting up the machine.
